| Specification | Details |
|---|---|
| Model | ZKX5030A |
| Tunnel Size (W × H) | 507mm × 305mm |
| Speed | 0.20 m/s |
| Height of Transmission Belt | 730 mm |
| Maximum Load | 120 Kg |
| Wire Resolution | 34 AWG (0.16mm metal wire) |
| Penetration | 8mm Steel Board |
| Monitor | 17-inch LED |
| System Features | High-density alarm, TIP, luggage counter, system timer, training mode, 64x zoom |
| Film Safety | ASA/ISO1600 standard |
| Radiation Leak Dosage | ≤ 0.1μ Gy/h (5cm from the shell) |
| Power Consumption | 1 kVA |
| Noise Level | 53.8 dB(A) |
| Package Dimensions (L × W × H) | 1900mm × 990mm × 1485mm |
| Package Weight | 410 Kg |

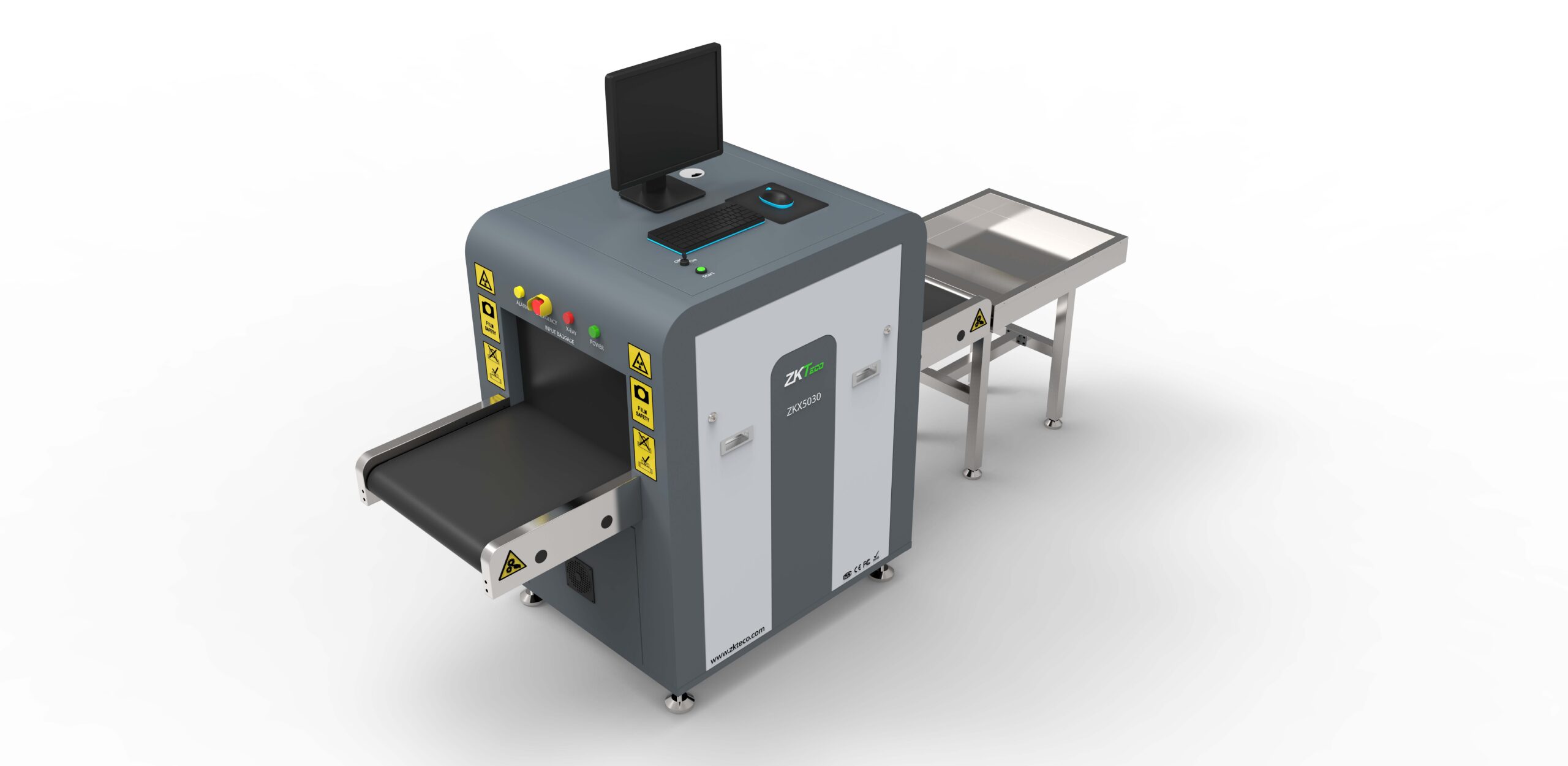

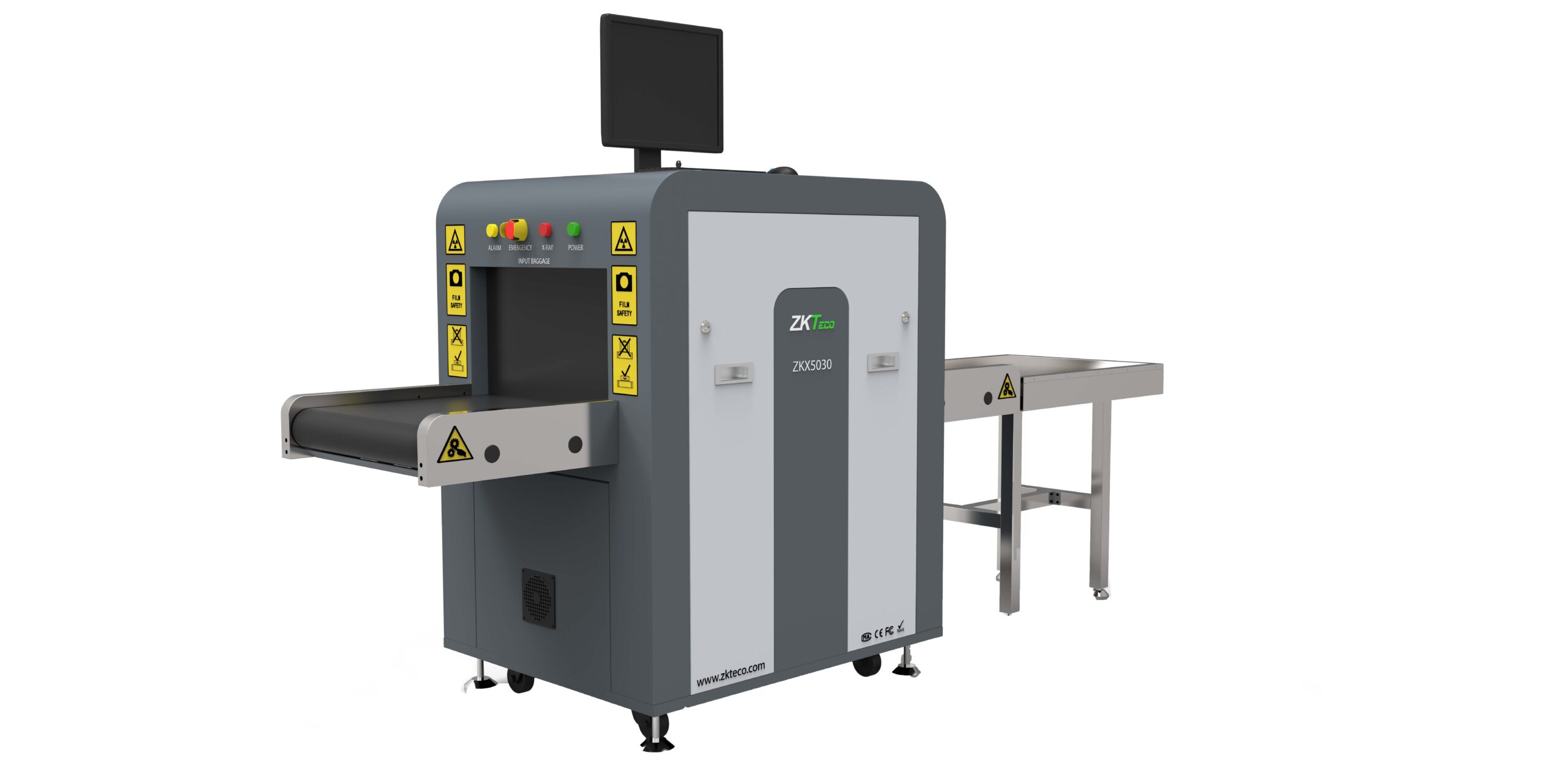

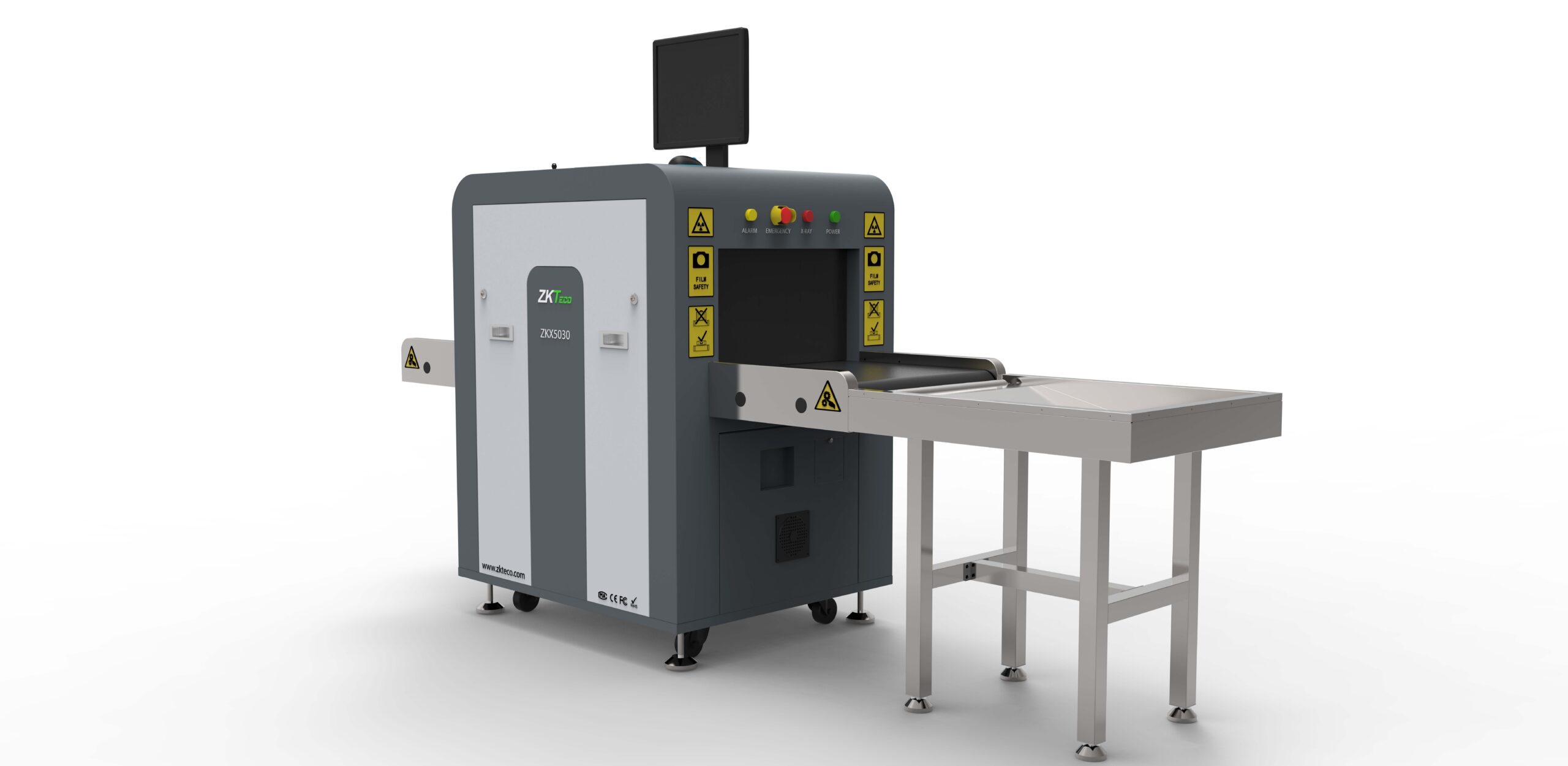

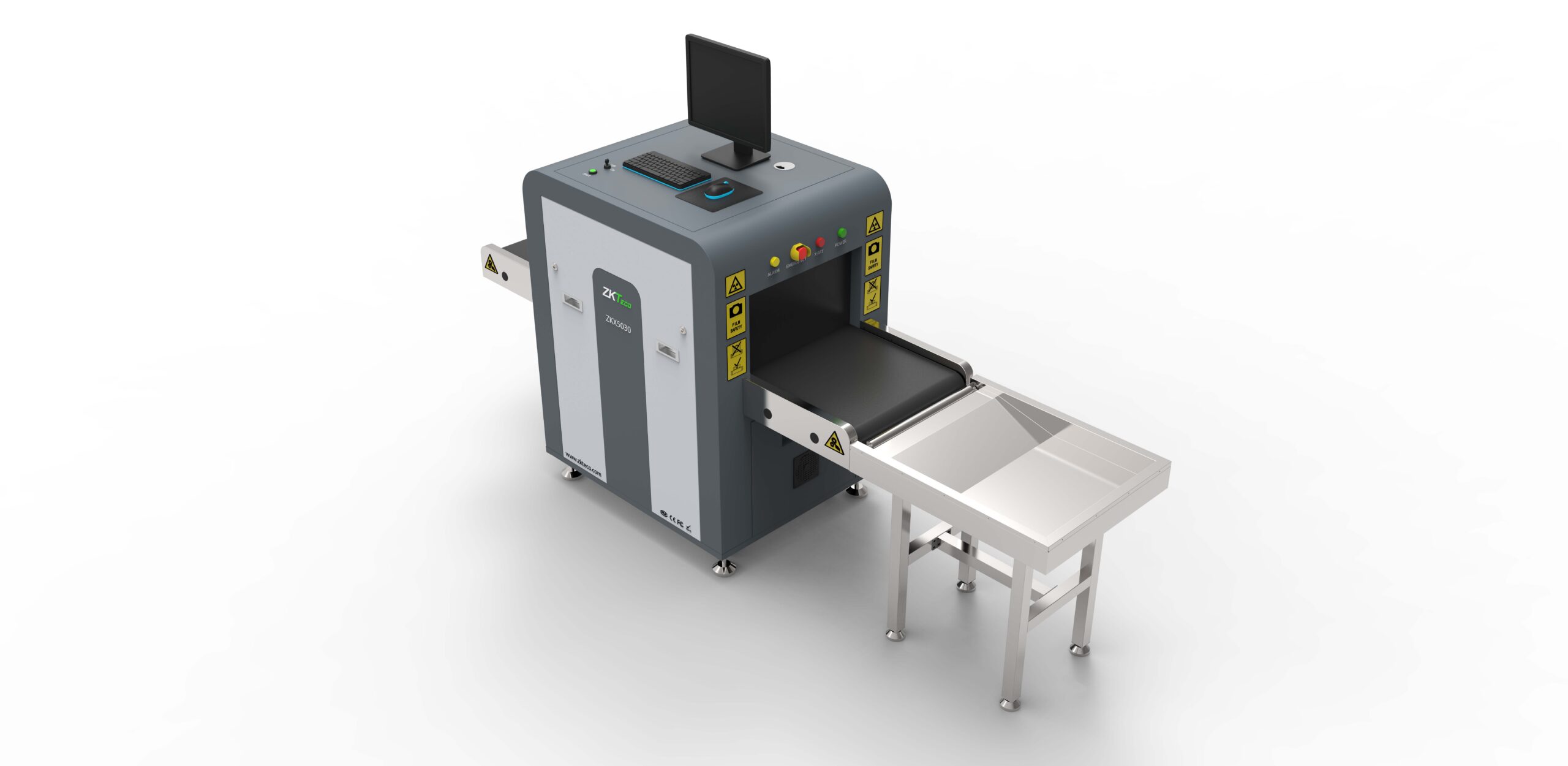

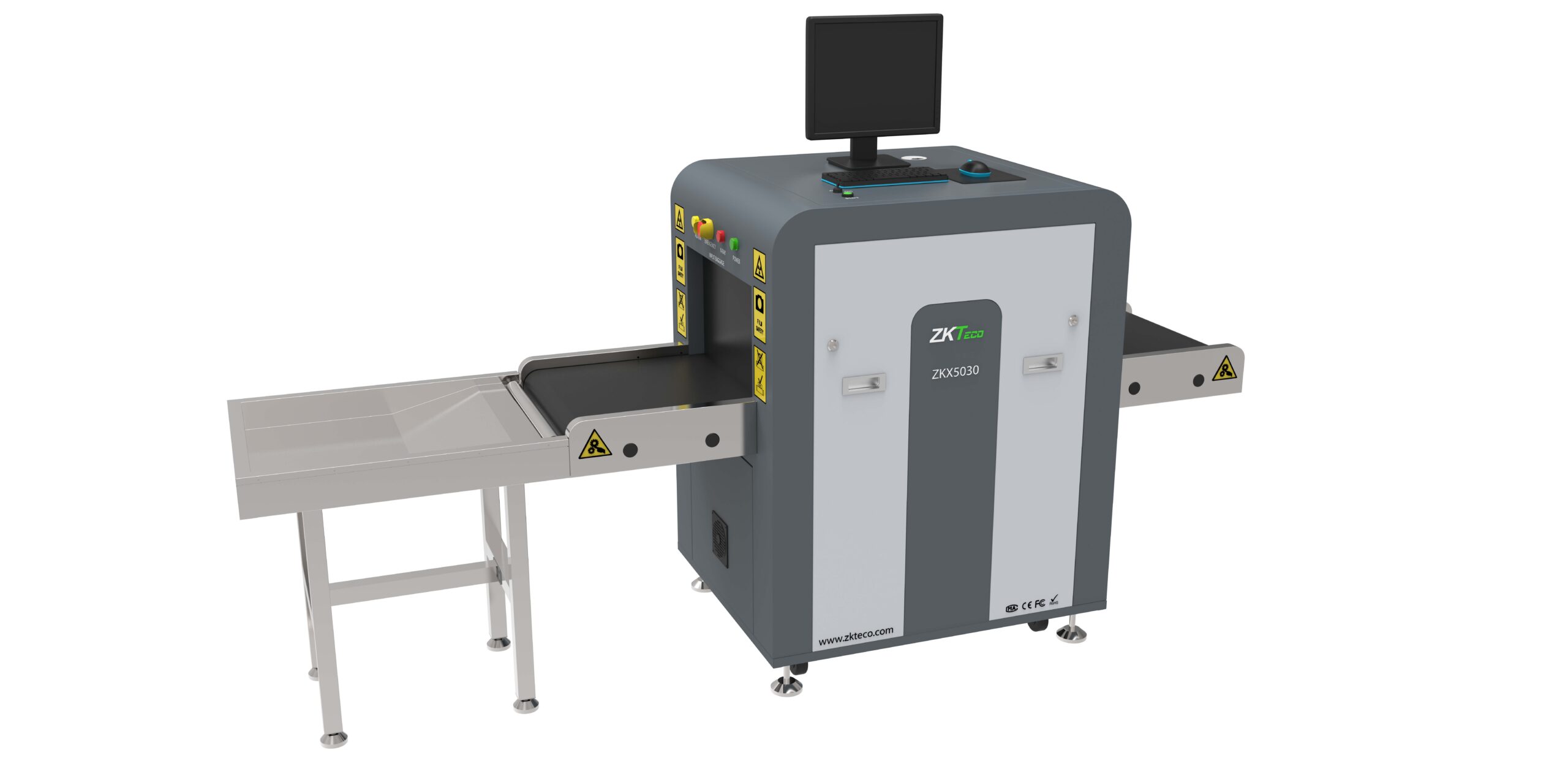

ZKX5030A
ZKX5030A X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.
-
High-Quality X-ray Imaging – Provides clear scanning images for identifying threats.
-
Single Energy X-ray System – Ideal for scanning briefcases, baggage, and small cargo parcels.
-
80kV X-ray Generator – Ensures deep penetration for detailed inspection.
-
Bidirectional Scan – Allows scanning from multiple angles.
-
Energy-Saving Mode – Reduces power consumption when idle.
-
High Wire Resolution – Detects metal wires as thin as 0.16mm.
-
Advanced System Functions – Includes luggage counter, high-density alarm, and training mode.
-
Large LED Display – 17-inch monitor for better image analysis.
-
Fingerprint Console Board (Optional) – Enhances security with biometric access.
-
Compact, Ergonomic Design – Modern and space-efficient industrial design.
BG1000 Series Datasheet: ZKX5030A Datasheet
ZKX5030A X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.
ZKX5030A uses reliable high quality X-ray generator. With the superb image algorithm, ZKX5030A could offer clear scanning image, which allows operators to identify potential threat items visually.
With ergonomic modern design, ZKX5030A could help operators to identify suspicious items fast and accurately.
