| Model | BG1030L/R | BG1045L/R | BG1060L/R |
|---|---|---|---|
| Operating Speed | 1.5s | 3s | 5s |
| Boom Arm Length | 3m | 4.5m | 6m |
| Boom Arm Type | Telescopic straight boom arm | ||
| Chassis Dimension | 350 × 300 × 1020 mm | ||
| Ingress Protection Level | IP54 | ||
| Motor Type | 24V brushless DC electric motor | ||
| Output Power | 120W | ||
| Rated Current | 6A | ||
| Power Supply | AC 220V, 50Hz (default); AC 110V, 60Hz (optional) | ||
| Operating Temperature | -35°C to 70°C | ||
| Operating Humidity | <90% | ||
| Motor MCBF | 3 million times | ||
| Remote Control Distance | ≥30m | ||
| Chassis Weight | 45kg | ||

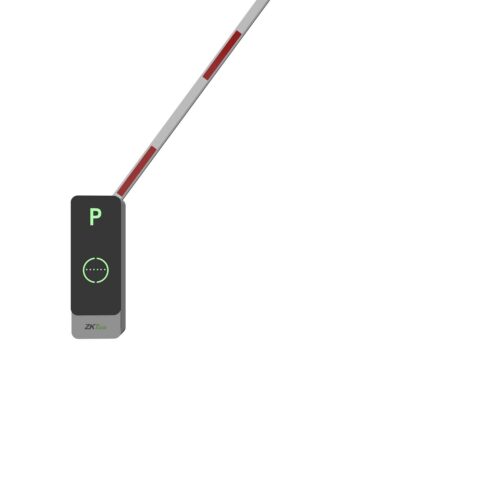

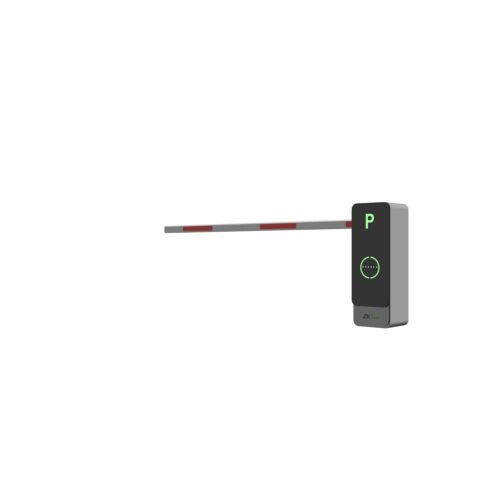

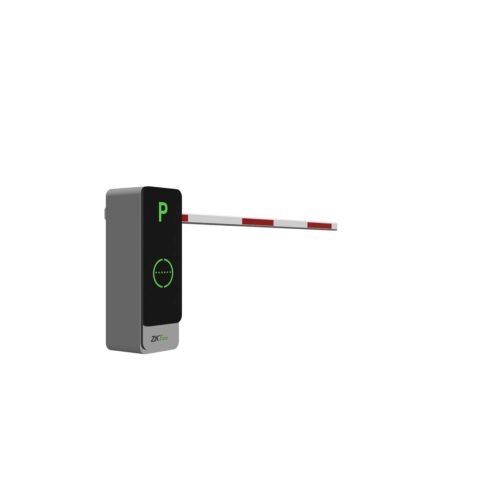

BG1000
BG1000 series barrier gates adopt ZKTeco interactive LED chassis design, programmable control panel, and adopt high-efficiency Brushless DC motor and SCM421 material gear transmission structure. It has the advantages of fast speed, stable quality, rich function expansion, and so on. It is a better comprehensive performance barrier gate.
-
The fastest operating speed is 1.5 seconds, adjustable based on boom arm length.
-

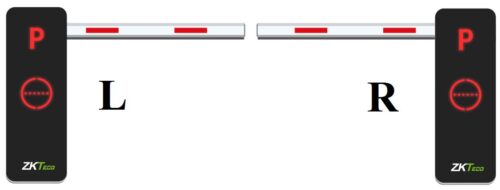

Reversible boom arm direction with a compact and simple transmission mechanism, making on-site installation easy.
-
Interactive LED chassis for better visibility and operation.
-
Digital control monitoring, including delay automatic close, automatic test, and rise/fall status display output.
-
Automatic turn-off settings, with manual raising of the gate arm and anti-smashing functionality.
-
Equipped with fire protection linkage functions for enhanced security.
-
Users can adjust the position and angle of rising/falling with a digital encoder for precise control.
-
24V backup battery, ensuring normal operation even during power outages.
-
2mm metal chassis with electrophoresis and powder coating for durability.
-
The gate arm will automatically return to its original position if it detects an obstruction.
BG1000 Series Datasheet: BG1000_Data_Sheet
BG1000 series barrier gates adopt ZKTeco interactive LED chassis design, programmable control panel, and adopt high-efficiency Brushless DC motor and SCM421 material gear transmission structure. It has the advantages of fast speed, stable quality, rich function expansion, and so on. It is a better comprehensive performance barrier gate.
